RIC - Remove Isolated Chunk

Quick Reference to Scripting Command
a=RIC(percentage, size)
Items in CAPS are 0/1 switches or switches with more options than 0/1.

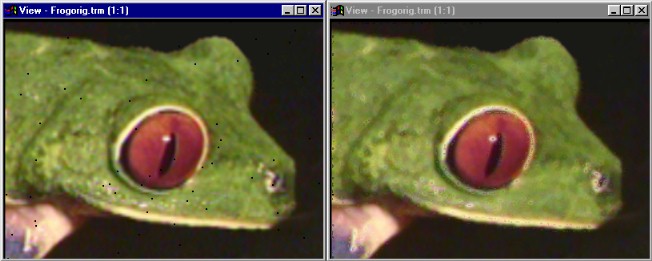

Operation Example

This operator allows you to remove discolored chunks in an image.

RIC Operator Dialog

RIC Controls

Percentage

This controls the percentage of chunks that will be replaced. A value of 100 means that the chunk will be removed from the image as much as possible. A low value, such as 10, will mean that the chunk is replaced partially and will not contrast so much with the rest of the image.

Size

This allows you to control the size of the comparison, a small value is best used to remove small chunks. A large value is best used to remove large discolored chunks in an image.

Trend

Some of the controls have a Trend button next to them. These trend buttons allow you to set variables over a series of frames. Each frame of any animation may be thought of as a slice of time. The trends allow you to alter some, all, or none of the variables for a particular time slice. Trend graphs have equidistantly spaced vertical lines. For animations under 100 frames in length, each of these lines represents a frame in the animation. The number of frames in any one sequence can be altered using the Sequence controls item from the Timeline pull down menu. Animation lengths of 100 - 999 frames will be represented with a vertical bar being 10 frames, and animation length greater than 1000 frames will have a vertical bar for every 100 frames. Click here to view more information on Trends.

WinImages F/x Manual Version 7, Revision 5, Level B
